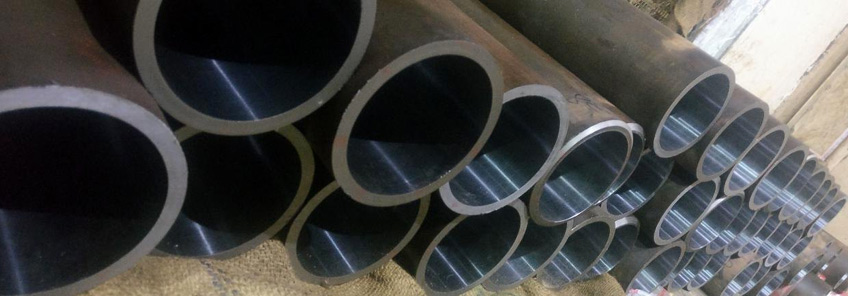

Specification of Hydraulic Cylinder Pipe
Pipe Type:
Hydraulic Cylinder Tubes
Hydraulic Cylinder Seamless Steel Pipe
Honed Hydraulic Cylinder Pipe
Dimensions:
Inner Diameter (ID): 40.0 – 115.0 mm.
Outer Diameter (OD): 40.0 – 120.0 mm.
Wall Thickness (WT): 4.0 – 10.0 mm.
Length:
Max Length: Upto 6 Mtrs
Metric and Imperial Sizes: Both metric and imperial sizes are available, with some examples including 1.875 in, 50 mm, 2 in, 55 mm, 2.25 in, 57.15 mm, and 60 mm
or Fixed length as per order of confirmation
Bore Outer Diameter:
28 MM to 900 MM (35.43307 inches)
Internal Diameter Accuracy:
H7, H8, H9
Internal Roughness:
RA0.1 μm - RA0.2μm
Technique: cold drawing, normalizing treatment, honing.
Supply Condition : Cold Drawn Seamless Steel Tube, Stress Relieved And Honed Or Skived Roller Burnished, BK(+C),BK+S(+SR)
Straightness: 0.5 /1000
Application: For hydraulic cylinder, swivel crane, injection machine and construction machine application
Packaging banding with steel strips, braiding parcel at outside
Impact test: -20℃, 27 J (only for special requirement)
High precision cold drawn tube (ready to honed tube) can also be supplied.
Surface Finish " Anti rust oiled coating on the inside and outside of the surface, plastic caps at both ends.
Other Available Products:
EN10305-1 E235 +SRA CDS Hydraulic Cylinder Pipe
High Precision Round Hydraulic Cylinder Pipe Supplier
Hot Forging Honed Hydraulic Cylinder Tube Dealer
Hydraulic Cylinder Tube (JW-S037H) Stocks
ST52, ST52-3 Hydraulic Cylinder Pipes
Hydraulic Cylinder Material Standards
Hydraulic cylinder pipes are typically made from high-strength materials that can withstand the high pressures and temperatures involved in hydraulic systems. The most common materials used are carbon steel, alloy steel, mild steel and stainless steel. The choice of material depends on the specific requirements of the application, including the operating pressure, temperature, and corrosion resistance.
Our Hydraulic honed pipe is usually produced according to norms as ASTM A513, DIN 2391, DIN 1630, DIN 1629, EN10305-1, EN 10216-2, A 519, GB/T 3639 etc. on customer's request. on customer’s request.
| Our Material | Material No. | Similar International Grade | Suitable for… |
| JIS G3445 STKM13C | ASTM MT1020 / BS ERWC3 / DIN ST45 / NF TU37b / ISO TS4 | Carbon steel tubes for machine structural purpose | |
| DIN 2391 ST52 | 1.0580 | JIS STKM19A / ASTM 1524 / EN E355 / ISO TS18 | Mechanical and automotive engineering |
| ST52 BK+S | 1.0580 | Low deformability without heat treatment after cold forming process and stress-relief annealing | |
| DIN 2393 ST52.3 | 1.0570 | ISO Gr.1 | Construction of chemical plant, pipe work and mechanical engineering use |
| ASTM A106 | 1.0405 | JIS STPT410 / BS HFS410 / DIN ST45.8 / NF TU42c | Seamless carbon steel pipe for high temperature service Suitable for bending, flanging, welding and similar forming operations |
Hydraulic Cylinder Pipe Price
Price Range : 70.00 - 130.00 INR/Kilograms
Hydraulic Cylinder Honed Pipe Suppliers
We supply a wide range of hydraulic cylinder pipes in various sizes and specs to suit different applications. Our prices reflect our commitment to quality and customer satisfaction. For detailed inquiries, please contact us directly
Carbon Steel Hydraulic Cylinder Pipe is Available in the Following Grades
- SAE 1020
- SAE 1026
- SAE1030/1035
- E355, E255, E215, E235
- ST52.3, St35, ST 52.4, St 37.4
Tolerance Standard:
| ID(mm) | TOLERANCE(mm) | |||
| H7 | H8 | H9 | H10 | |
| ≦30 | +0.021/0 | +0.033/0 | +0.052/0 | +0.084/0 |
| 30 – ≦50 | +0.025/0 | +0.039/0 | +0.062/0 | +0.100/0 |
| 50 – ≦80 | +0.030/0 | +0.046/0 | +0.074/0 | +0.120/0 |
| 80 – ≦120 | +0.035/0 | +0.054/0 | +0.087/0 | +0.140/0 |
| 120 – ≦180 | +0.040/0 | +0.063/0 | +0.100/0 | +0.160/0 |
| 180 – ≦250 | +0.046/0 | +0.072/0 | +0.115/0 | +0.185/0 |
| 250 – ≦315 | +0.052/0 | +0.081/0 | +0.130/0 | +0.210/0 |
| 315 – ≦700 | +0.057/0 | +0.089/0 | +0.140/0 | +0.230/0 |
Advantages of Using Hydraulic Cylinder Pipe
- High precision tolerances
- High-pressure resistance
- High Smooth inside surface
- Good weldability
| Other Types of Hydraulic Cylinder Steel Pipes |
|---|
|
Honed Pipes for Hydraulic Cylinder Pipes Production Process
| Processing Way | Cylinder ID mm | Length m | Straightness mm/m | Tolerance on ID | Tolerance on WT | Roughness |
| Cold Drawn tube | 40-320 | ≤12m | 0.2-0.5 | / | ±5% | 0.8-1.6 |
| Cold rolling tube | 30-100 | ≥12m |
|
/ | ±5% | 0.8-1.2 |
| Cold drawn-honed tubes | 40-500 | 8m | 0.2-0.3 | H8-H9 | ±5% | 0.2-0.8 |
| Cold drawn-roll tube | 40-400 | 7m | 0.2-0.3 | H8-H9 | ±5% | ≤0.4m |
| Deep-hole tube | 320-400 | 8m | 0.2-0.3 | H7-H9 | ±8% | ≤0.8 |
Hydraulic Cylinder Pipe Industrial Application
Hydraulic cylinder pipes are used in various industries such as
- Heavy Duty Hydraulic Cylinder
- High-Pressure Hydraulic Cylinder
- Water Systems
- Heavy Machinery
- Robotics and Automation
- Construction Equipment
- Oil and Gas
- Automation
- Aerospace
- Manufacturing and Industrial and many more
Suppliers and Stockists of Hydraulic Cylinder Pipe in Cities Like
|
Ahmedabad |
Gandhinagar |
Surat |
Rajkot |
St52 Hydraulic Cylinder Pipes Stockist in Surat, Carbon Steel Hydraulic Cylinder Pipe Dealer in Ankleshwar, Hydraulic Cylinder Seamless Pipes Supplier in Ankleshwar, Hydraulic Pipes Stockist in Baroda.
Hydraulic Cylinder Pipe Sizes
We offer Hydraulic Cylinder Pipes with inner diameters from 40.0 to 115.0 mm, outer diameters from 40.0 to 120.0 mm, wall thicknesses from 4.0 to 10.0 mm, and lengths up to 6 meters, available in both metric and imperial sizes.
